my father took off my training wheels.
Since then, I've always enjoyed riding bicycles. Now that I'm retired, I've been building tricycles ('trikes') as a hobby. Here you'll see some construction pictures of my projects.(Special thanks to the gang at 'AtomicZombie.com' for their inspiration).
========================================
- For construction details of the 'Yellow Fever' Recumbent Trike, scroll down....
- For construction details of the Chopper Trike, click HERE.
- For construction details of the "Double Vision" trike, click HERE.
- "QUAD MOD"..Click HERE for details of an easy modification which allows interchangeable front ends on the Recumbent trike.
- For a look back into the Archives for some earlier builds, click HERE.
- Click HERE for details of a Universal Trike Kit which can turn a conventional 2-wheeler into a Trike.
====================================
The build began in January, 2007, with the purchase of some square steel tubing for the frame and parts from bikes found along the side of the road.

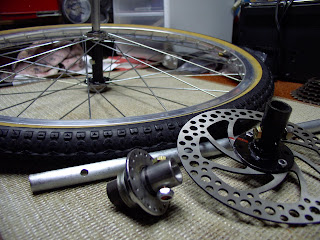

A trike requires wider rear hubs than a 'normal' bike, so I widened mine to 3 1/2 inches using a piece of old pipe and some hubs from a rusty old bike found in the trash.
Some plywood, some foam and a fancy cover makes a comfy seat for long rides.
 |  |  |
This experimental mechanism allows the handle bars to be adjusted to the rider's comfort.
(Click on any picture for a larger image).
The Trike is completely disassembled and prepped for paint.
First, some white primer...followed by some bright yellow...
then topped off with a 'clear coat'.
It don't mean a thing unless it's got some BLING...!!
Alloy pedals, chrome drink holder, and shiny pike nuts for the front axle bring out the sparkle...
A few of the Special Features of the trike include:
* Dual Rear Disc Brakes
* Removable rear wheels
* Tilt Steering (See above for details)
* Adjustable pedal assembly
* Adjustable seat angle
(Click on any picture for a larger view)
There are 2 wheelsets for various types of riding. The 26-inch "Speed" wheels provide a smooth, high speed ride on well-paved roads and bike paths. The 24-inch "All Terrain" wheels are for mixed-terrain trails which may be unpaved, gravel, or natural paths.
Of all the bikes I've built, this project was the most challenging, fun and educational.
